Washing machine assembly line

Product Overview

This production line is specially designed for large-scale manufacturing of drum washing machines, adopting a modular layout and automated conveyor system, achieving full-process coverage from component assembly to finished product testing. The production line features a reasonable production rhythm and scientifically arranged workstations, capable of meeting the mixed-line production needs of multiple models. It is a benchmark solution for high efficiency, stability, and intelligence in the home appliance manufacturing sector.

Core Structure and Process Flow

1. Automated Conveyor System
The production line uses chain plate or roller conveyor lines, combined with tooling boards for positioning, ensuring stability and positioning accuracy of the washing machine body during transfer. The conveyor speed is adjustable and supports variable frequency control, allowing flexible adjustment according to production rhythm. The conveyor system runs throughout the workshop, forming a U-shaped or linear layout to maximize factory space utilization and optimize logistics flow.

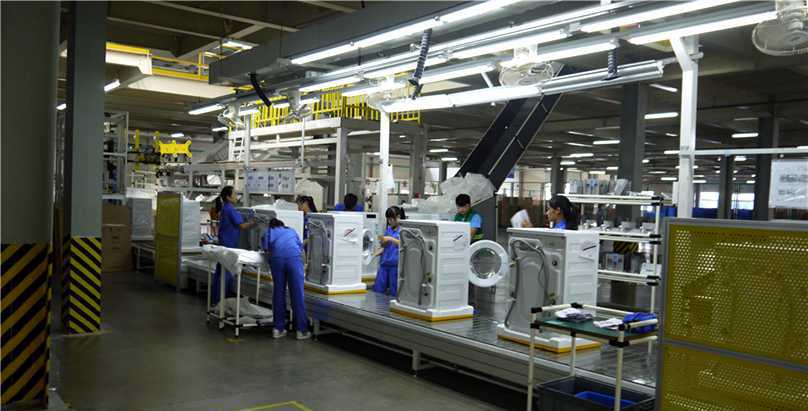

2. Key Assembly Workstations

Front Module Station: Assembles core components such as the drum, outer tub, and shock absorption system. Assisted by robotic arms to reduce labor intensity.

Control Panel and Electrical Assembly Station: Integrates electronic components such as computer boards, wiring harnesses, and display screens, equipped with anti-static protection and torque control tools.

Rear Panel and Pipeline Connection Station: Completes standardized installation of external components like water inlet/outlet pipes and power cables.

Exterior Assembly Station: Installs sheet metal parts such as the door, side panels, and top cover, ensuring uniform gaps and scratch-free surfaces.

3. Intelligent Testing System

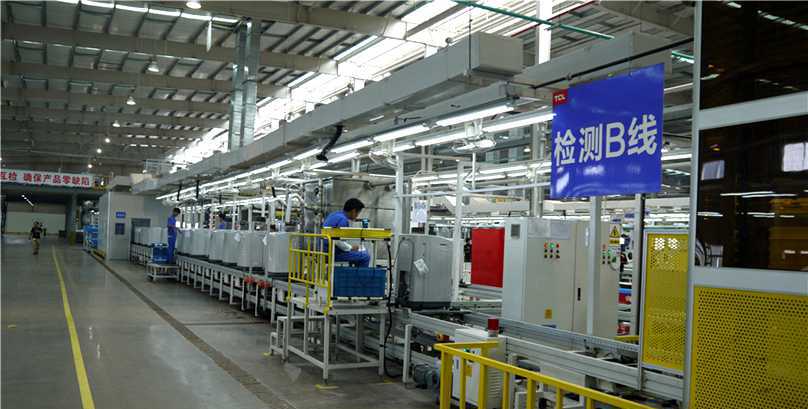

The production line is equipped with dedicated testing stations such as Testing Line B, integrating multiple quality control measures:

Safety Testing: Fully automatic testing of grounding resistance, insulation withstand voltage, and leakage current.

Functional Testing: Full-program simulation of water intake, washing, drainage, and spinning.

Performance Testing: Real-time collection of key parameters such as vibration, noise, and energy consumption.

Visual Inspection: Detection of exterior defects to ensure zero-defect products.

Technical Advantages
Flexible Manufacturing Capability: Supports co-production of washing machines with different capacities and functional configurations on the same line through quick-change devices and intelligent scheduling systems. Changeover time is greatly reduced, catering to small-batch and multi-variety market demand.

Ergonomic Optimization: Workstation height, lighting, and tool-hanging systems are designed according to ergonomics, equipped with error-proof devices and electronic operation manuals on display boards, reducing operation difficulty and improving work consistency.

Information Management: MES system collects production data in real time, enabling work order tracking, quality traceability, equipment status monitoring, and capacity analysis, providing data support for intelligent manufacturing.

Energy-saving and Environmental Design: Adopts LED lighting, variable frequency motors, centralized air supply, and other energy-saving solutions. Equipped with exhaust and ventilation systems to improve workshop environment, meeting green factory standards.

Applicable Scenarios
This production line is suitable for medium to large washing machine manufacturing bases with an annual output of 500,000 to 2 million units. It can be customized according to customer requirements for line length, number of workstations, and automation level, supporting configurations from semi-automatic to highly automated setups, helping home appliance companies achieve both quality and efficiency.
